PIC12F1571 8-Pin MCU

📥 Download Datasheet Datasheet Preview Page 1

Description

PIC12(L)F1571/2 8-Pin MCU with High-Precision 16-Bit PWMs .
PIC12(L)F1571/2 microcontrollers combine the capabilities of 16-bit PWMs with Analog to suit a variety of applications.

📥 Download Datasheet

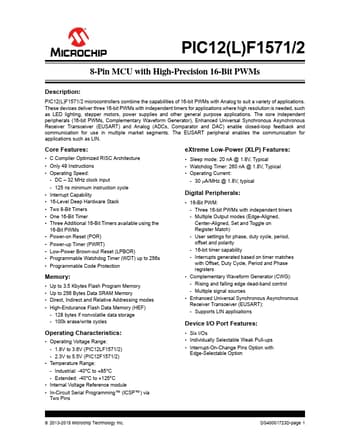

Preview of PIC12F1571 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* C Compiler Optimized RISC Architecture
* Only 49 Instructions
* Operating Speed: - DC
* 32 MHz clock input - 125 ns minimum instruction cycle
* Interrupt Capability
* 16-Level Deep Hardware Stack
* Two 8-Bit Timers
* One 16-Bit Timer

Applications

* These devices deliver three 16-bit PWMs with independent timers for applications where high resolution is needed, such as LED lighting, stepper motors, power supplies and other general purpose applications. The core independent peripherals (16-bit PWMs, Complementary Waveform Generator), Enhanced U
