PIC12F1572, PIC12F1571 Datasheet - Microchip

PIC12F1572, PIC12F1571, 8-Pin MCU

PIC12(L)F1571/2 8-Pin MCU with High-Precision 16-Bit PWMs .
PIC12(L)F1571/2 microcontrollers combine the capabilities of 16-bit PWMs with Analog to suit a variety of applications.

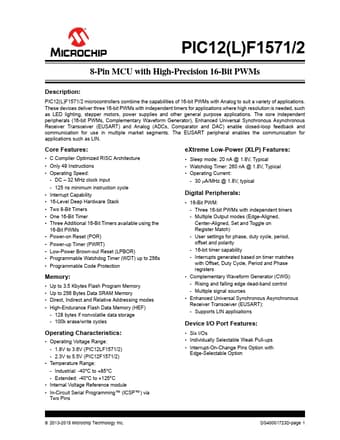

datasheet Preview Page 1 from Datasheet4u.com

PIC12F1571-Microchip.pdf

PIC12F1572 Datasheet Preview — This datasheet PDF includes multiple part numbers: PIC12F1572, PIC12F1571. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PIC12F1572, PIC12F1571

Manufacturer:

Microchip ↗

File Size:

2.47 MB

Description:

8-Pin MCU

Note:

This datasheet PDF includes multiple part numbers: PIC12F1572, PIC12F1571.
Please refer to the document for exact specifications by model.

Features

* C Compiler Optimized RISC Architecture
* Only 49 Instructions
* Operating Speed: - DC
* 32 MHz clock input - 125 ns minimum instruction cycle
* Interrupt Capability
* 16-Level Deep Hardware Stack
* Two 8-Bit Timers
* One 16-Bit Timer

Applications

* These devices deliver three 16-bit PWMs with independent timers for applications where high resolution is needed, such as LED lighting, stepper motors, power supplies and other general purpose applications. The core independent peripherals (16-bit PWMs, Complementary Waveform Generator), Enhanced U
