PIC12LC509A, PIC12CE518 8-Bit CMOS Microcontrollers

PIC12LC509A Description

PIC12C5XX 8-Pin, 8-Bit CMOS Microcontrollers Devices included in this Data Sheet: * PIC12C508 * PIC12C508A * PIC12C509 4 PIC12C5XX Device Varieties 7 Architectural Overview 9 Memory Organization 13 I/O Port 21 Timer0 Module and TMR0 Register 25 EEPROM Peripheral Op.

PIC12LC509A Features

* 8-bit real time clock/counter (TMR0) with 8-bit programmable prescaler
* Power-On Reset (POR)
* Device R eset iT mer DRT) (
* Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
* Programmable code-protection
* 1,000,000 e

PIC12LC509A Applications

* The PIC12C5XX from Microchip Technology is a family of l ow-cost, hi gh p erformance, 8-bit, ful ly s tatic, EEPROM/EPROM/ROM-based C MOS mi crocontrollers. It employs a RISC architecture with only 33 single word/single cycle instructions. All instructions are single cy cle (1 ยต s) e xcept f or prog

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PIC12LC509A, PIC12CE518. Please refer to the document for exact specifications by model.

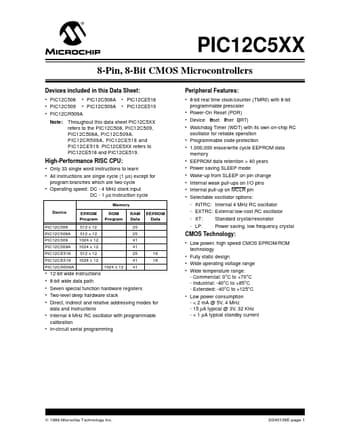

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PIC12LC509A, PIC12CE518
Manufacturer
Microchip ↗
File Size
1.49 MB
Datasheet
PIC12CE518-Microchip.pdf
Description
8-Bit CMOS Microcontrollers
Note
This datasheet PDF includes multiple part numbers: PIC12LC509A, PIC12CE518.
Please refer to the document for exact specifications by model.
