PIC12LCE518, PIC12CE518 - 8-Bit CMOS Microcontrollers

Name: PIC12LCE518
SKU: PIC12LCE518-796506

Microchip

📥 Download Datasheet

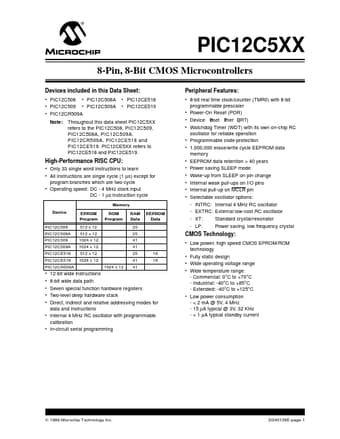

PIC12LCE518 Datasheet Preview — This datasheet PDF includes multiple part numbers: PIC12LCE518, PIC12CE518. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PIC12LCE518, PIC12CE518
Manufacturer	Microchip
File Size	1.49 MB
Description	8-Bit CMOS Microcontrollers
Datasheet	PIC12CE518-Microchip.pdf
Note	This datasheet PDF includes multiple part numbers: PIC12LCE518, PIC12CE518. Please refer to the document for exact specifications by model.

PIC12LCE518 Product details

Description

4 PIC12C5XX Device Varieties 7 Architectural Overview 9 Memory Organization 13 I/O Port 21 Timer0 Module and TMR0 Register 25 EEPROM Peripheral Operation 29 Special

Features

8-bit real time clock/counter (TMR0) with 8-bit programmable prescaler.
Power-On Reset (POR).
Device R eset iT mer DRT) (.
Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation.
Programmable code-protection.
1,000,000 erase/write cycle EEPROM data memory.
EEPROM data retention > 40 years.
Power saving SLEEP mode.
Wake-up from SLEEP on pin change.
Internal weak pull-ups on I/O pins.
