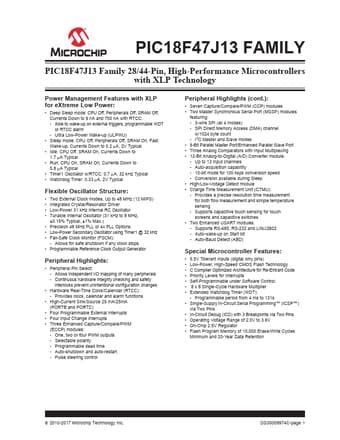

PIC18F47J13, PIC18F26J13 - High-Performance Microcontrollers

Microchip

Datasheet Details

Part number	PIC18F47J13, PIC18F26J13
Manufacturer	Microchip ↗
File Size	4.01 MB
Description	High-Performance Microcontrollers
Datasheet	PIC18F26J13-Microchip.pdf
Note	This datasheet PDF includes multiple part numbers: PIC18F47J13, PIC18F26J13. Please refer to the document for exact specifications by model.

with XLP for eXtreme Low Power:.
Deep Sleep mode: CPU Off, Peripherals Off, SRAM Off, Currents Down to 9 nA and 700 nA with RTCC: - Able to wake-up on external triggers, programmable WDT or RTCC alarm - Ultra Low-Power Wake-up (ULPWU).
Sleep mode: CPU Off, Peripherals Off, SRAM On, Fast Wake-up, Currents Down to 0.2 A, 2V Typical.
Idle: CPU Off, SRAM On, Currents Down to 1.7 A Typical.
Run: CPU On, SRAM On, Currents Down to 5.8 A Typical.
Timer1 Os.
