PIC24HJ128GP210A, PIC24HJ64GP206A Datasheet - Microchip

PIC24HJ128GP210A 16-bit Microcontrollers

PIC24HJXXXGPX06A/X08A/X10A 16-bit Microcontrollers (up to 256 KB Flash and 16 KB SRAM) with Advanced Analog Operating Conditions 3.0V to 3.6V, -40ºC to +150ºC, DC to 20 MIPS 3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS Core: 16-bit PIC24H CPU Code-efficient (C and Assembly) architecture Single-cycle mixed-sign MUL plus hardware divide Clock Management ±2% internal oscillator Programmable PLLs and oscillator clock sources Fai.

PIC24HJ128GP210A Features

* Two ADC modules: - Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H - 18 analog inputs on 64-pin devices and up to 32 analog inputs on 100-pin devices

* Flexible and independent ADC trigg

PIC24HJ64GP206A-Microchip.pdf

This datasheet PDF includes multiple part numbers: PIC24HJ128GP210A, PIC24HJ64GP206A. Please refer to the document for exact specifications by model.

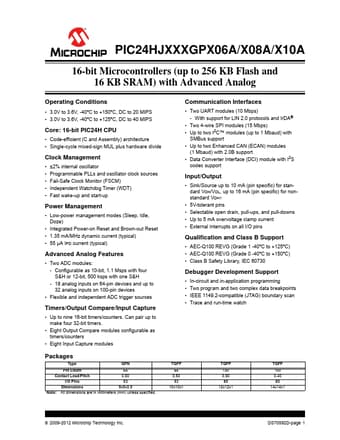

PIC24HJ128GP210A Datasheet Preview Page 2 PIC24HJ128GP210A Datasheet Preview Page 3

Datasheet Details

Part number:

PIC24HJ128GP210A, PIC24HJ64GP206A

Manufacturer:

Microchip ↗

File Size:

2.18 MB

Description:

16-bit microcontrollers.

Note:

This datasheet PDF includes multiple part numbers: PIC24HJ128GP210A, PIC24HJ64GP206A.
Please refer to the document for exact specifications by model.
