PIC32CMLS00 - Secure and Enhanced Touch MCU

This page provides the datasheet information for the PIC32CMLS00, a member of the PIC32CMLE00 Secure and Enhanced Touch MCU family.

Features

  • 32 KB Boot ROM System.
  • Power-on Reset (POR) and programmable Brown-out Detection (BOD).
  • 16-channel Direct Memory Access Controller (DMAC).
  • 12-channel event system for Inter-peripheral Core-independent Operation.
  • CRC-32 generator Low-Power and Power Management.
  • Active, Idle, Standby with partial or full SRAM retention and off sleep modes:.
  • Active mode (< 40 μA/MHz for PL0, < 60 μA/MHz for PL2).
  • Idle mode (< 15 μA/MHz) with 1.

📥 Download Datasheet

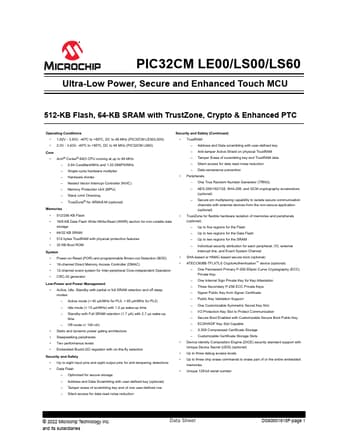

Datasheet preview – PIC32CMLS00

Datasheet Details

Part number PIC32CMLS00
Manufacturer Microchip
File Size 10.10 MB
Description Secure and Enhanced Touch MCU
Datasheet download datasheet PIC32CMLS00 Datasheet
Additional preview pages of the PIC32CMLS00 datasheet.

📁 Similar Datasheet

  • PIC32 - Flash Programming Specification (Microchip Technology)
  • PIC30F2010 - DSPIC30Fxxxx (Microchip Technology)
  • PIC30F2011 - DSPIC30F2011 (Microchip Technology)
  • PIC30F3011 - 16-Bit Digital Signal Controllers (Microchip Technology)
  • PIC30F4011 - (PIC30F4011 / PIC30F4012) 16-Bit Digital Signal Controllers (Microchip Technology)
  • PIC30F4012 - 16-Bit Digital Signal Controllers (Microchip Technology)
  • PIC30F4012 - (PIC30F4011 / PIC30F4012) 16-Bit Digital Signal Controllers (Microchip Technology)
  • PIC30F6010A - DSPIC30F6010 (Microchip Technology)
  • PIC33FJ12 - DSPIC33FJ12 (Microchip Technology)
  • PIC-0103 - Photo IC(photodiode with signal processing) (KODENSHI KOREA CORP)
Other Datasheets by Microchip

Full PDF Text Transcription

Click to expand full text
PIC32CM LE00/LS00/LS60 Ultra-Low Power, Secure and Enhanced Touch MCU 512-KB Flash, 64-KB SRAM with TrustZone, Crypto & Enhanced PTC Operating Conditions • 1.62V - 3.63V, -40ºC to +85ºC, DC to 48 MHz (PIC32CM LE00/LS00) • 2.0V - 3.63V, -40ºC to +85ºC, DC to 48 MHz (PIC32CM LS60) Core • Arm® Cortex®-M23 CPU running at up to 48 MHz: – 2.64 CoreMark/MHz and 1.
