TC520A - Serial Interface Adapter

TC520A Description

TC520A Serial Interface Adapter for TC500 A/D Converter Family .
The TC520A serial interface adapter provides logic control for Microchip's TC500/TC500A/TC510/TC514 family of dual slope, integrating A/D converters.

TC520A Features

* Converts TC500/TC500A/TC510/TC514 to Serial Operation
* Programmable Conversion Rate and Resolution for Maximum Flexibility
* Supports up to 17-Bits of Accuracy Plus Polarity Bit
* Low Power Operation: Typically 7.5m
* 14-Pin PDIP or 16-Pin SOIC Packages

TC520A Applications

* Computer Peripheral Interface
* Portable Instruments
* Data Acquisition System Interface Device Selection Table Part Number Package Temperature Range TC520ACOE 16-Pin SOIC (Wide) TC520ACPD 14-Pin PDIP 0C to +70C 0C to +70C Package Type VDD 1 DGND 2 CMPTR 3 B4 A5 O

📥 Download Datasheet

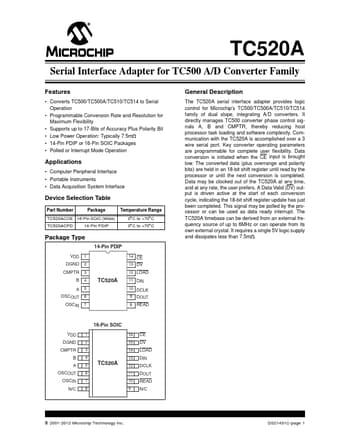

Preview of TC520A PDF
