USB2230, USB2229 Datasheet - Microchip

USB2230 5th Generation Hi-Speed USB Flash Media and IrDA Controller

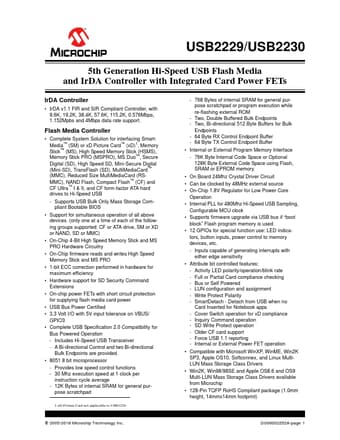

USB2229/USB2230 5th Generation Hi-Speed USB Flash Media and IrDA Controller with Integrated Card Power FETs IrDA Controller IrDA v1.1 FIR and SIR Compliant Controller, with 9.6K, 19.2K, 38.4K, 57.6K, 115.2K, 0.576Mbps, 1.152Mpbs and 4Mbps data rate support. Flash Media Controller Complete System Solution for interfacing SmartMedia™ (SM) or xD Picture Card™ (xD)1, Memory Stick™ (MS), High Speed Memory Stick (HSMS), Memory Stick PRO (MSPRO), MS Duo™, Secure Digital (SD), High.

USB2229-Microchip.pdf

USB2230 Datasheet Preview — This datasheet PDF includes multiple part numbers: USB2230, USB2229. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

USB2230, USB2229

Manufacturer:

Microchip ↗

File Size:

290.94 KB

Description:

5th generation hi-speed usb flash media and irda controller.

Note:

This datasheet PDF includes multiple part numbers: USB2230, USB2229.
Please refer to the document for exact specifications by model.
