USB2250 - Ultra Fast USB 2.0 Multi-Slot Flash Media Controller

Product Overview

Microchip

Datasheet Details

Part number	USB2250
Manufacturer	Microchip
File Size	343.72 KB
Description	Ultra Fast USB 2.0 Multi-Slot Flash Media Controller
Datasheet	USB2250 Datasheet

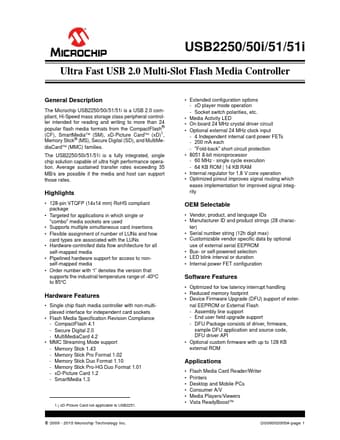

Additional preview pages of the USB2250 datasheet.

Product details

Description

The Microchip USB2250/50i/51/51i is a USB 2.0 compliant, Hi-Speed mass storage class peripheral controller intended for reading and writing to more than 24 popular flash media formats from the CompactFlash® (CF), SmartMediaTM (SM), xD-Picture CardTM (xD)1, Memory Stick® (MS), Secure Digital (SD), and MultiMediaCardTM (MMC) families.

Features

Single chip flash media controller with non-multiplexed interface for independent card sockets.
Flash Media Specification Revision Compliance - CompactFlash 4.1 - Secure Digital 2.0 - MultiMediaCard 4.2.
MMC Streaming Mode support - Memory Stick 1.43 - Memory Stick Pro Format 1.02 - Memory Stick Duo Format 1.10 - Memory Stick Pro-HG Duo Format 1.01 - xD-Picture Card 1.2 - SmartMedia 1.3 1.) xD-Picture Card not applicable to USB2251.  2009 - 2015 Microchip Technology.
