USB2230, USB2229 - (USB2229 / USB2230) 5th Generation Hi-Speed USB Flash Media and IrDA Controller

SMSC Corporation

USB2230 Description

USB2229/USB2230 5th Generation Hi-Speed USB Flash Media and IrDA Controller with Integrated Card Power FETs PRODUCT .
at any time without notice.

USB2230 Features

* IrDA Controller
* IrDA v1.1 FIR and SIR Compliant Controller, with 9.6K, 19.2K, 38.4K, 57.6K, 115.2K, 0.576Mbps, 1.152Mpbs and 4Mbps data rate support. Flash Media Controller
* Complete System Solution for interfacing SmartMediaTM (SM) or xD Picture CardTM (xD)1, Memory StickTM (MS),

USB2230 Applications

* Consequently, complete information sufficient for construction purposes is not necessarily given. Although the information has been checked and is believed to be accurate, no responsibility is assumed for inaccuracies. SMSC reserves the right to make changes to specifications and product descriptio

📥 Download Datasheet

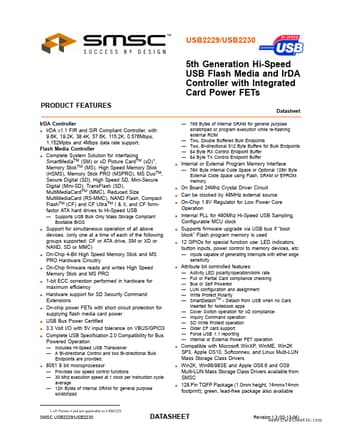

USB2230 Datasheet Preview — This datasheet PDF includes multiple part numbers: USB2230, USB2229. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: USB2230, USB2229
Manufacturer: SMSC Corporation
File Size: 665.65 KB
Datasheet: USB2229_SMSCCorporation.pdf
Description: (USB2229 / USB2230) 5th Generation Hi-Speed USB Flash Media and IrDA Controller
Note: This datasheet PDF includes multiple part numbers: USB2230, USB2229.
Please refer to the document for exact specifications by model.
