VS-504 - High Frequency Discrete Dual Frequency VCSO

Microchip

VS-504 Description

VS-504 High Frequency Discrete Dual Frequency VCSO VS-504 .
The VS-504 dual frequency VCSO (Voltage Controlled Saw Oscillator) is a high frequency, ultra low phase noise oscillator designed to support high spe.

VS-504 Applications

* Frequency Range 0.6 to 3.0 GHz
* Dual Frequency
* Ultra low jitter performance
* Typical Jitter: 12fsec rms, 12kHz to 20MHz
* 3.3 supply voltage
* Output sinewave + balanced sinewave + LVPECL
* 9x14 mm SMD package
* See table on Page

📥 Download Datasheet

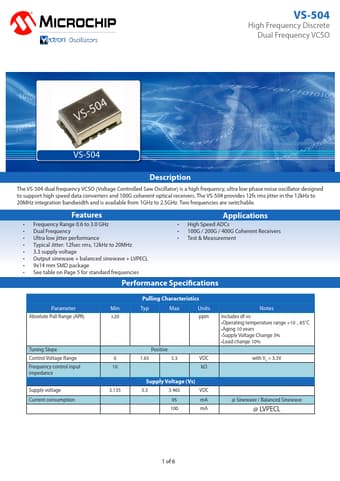

VS-504 Datasheet Preview — Preview of VS-504 PDF

Datasheet Details

Part number: VS-504
Manufacturer: Microchip ↗
File Size: 572.39 KB
Datasheet: VS-504-Microchip.pdf
Description: High Frequency Discrete Dual Frequency VCSO
