VS-502 - Voltage Controlled SAW Oscillator

VS-502 Description

Product Data Sheet PRELIMINARY VS-502 Voltage Controlled SAW Oscillator .
The VS-502 is a SAW based voltage controlled oscillator that operates at the fundamental frequency of the internal SAW resonator.

VS-502 Features

* Output frequencies from 300 MHz to 1350 MHz
* Ultra low jitter < 0.2 ps-rms (12 kHz to 20 MHz) < 0.2 ps-rms (50 kHz to 80 MHz)
* Low phase noise, -160 dBc/Hz @ 1 MHz offset (1 GHz)
* Small low profile 9.0
* 14.0
* 4.5 mm SMT package
* 3.3 V, 5.0 V an

VS-502 Applications

* Point to Point / Point to Multi Point Radios
* Instrumentation
* PLL Frequency Translation
* Test & Measurement

📥 Download Datasheet

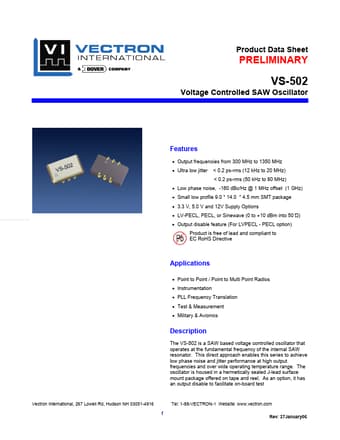

Preview of VS-502 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS-502
Manufacturer
Vectron International
File Size
228.09 KB
Datasheet
VS-502_VectronInternational.pdf
Description
Voltage Controlled SAW Oscillator
