VS-700 - Crystal Oscillator

Description

The VS-700 is a SAW based voltage controlled oscillator that operates at the fundamental frequency of the internal SAW filter.

The SAW filter is a high-Q quartz device that enables the circuit to achieve low phase jitter performance over a wide operating temperature range.

Features

  • Industry Standard Package, 5.0 x 7.5 x 2.5 mm Output Frequencies from 500 MHz to 850 MHz 3.3 V Operation Low Jitter < 0.25 ps-rms across 50 kHz to 80 MHz LV-PECL Configuration with Fast Transition Times Complementary Outputs Output Disable Feature Product is free of lead and compliant to EC RoHS Directive.

📥 Download Datasheet

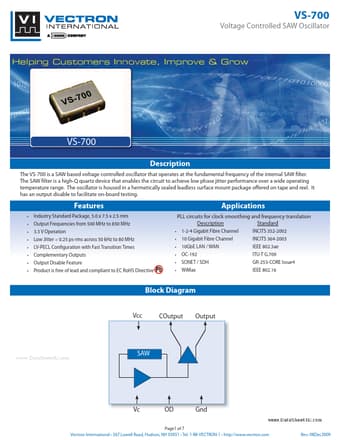

Datasheet preview – VS-700

Datasheet Details

Part number VS-700
Manufacturer Vectron International
File Size 851.10 KB
Description Crystal Oscillator
Datasheet download datasheet VS-700 Datasheet
