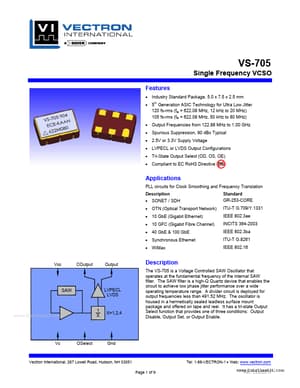

VS-705
Single Frequency VCSO
Features
• Industry Standard Package, 5.0 x 7.5 x 2.5 mm • 5th Generation ASIC Technology for Ultra Low Jitter 120 fs-rms (fN = 622.08 MHz, 12 kHz to 20 MHz) 105 fs-rms (fN = 622.08 MHz, 50 kHz to 80 MHz) • Output Frequencies from 122.88 MHz to 1.00 GHz • Spurious Suppression, 90 dBc Typical • 2.5V or 3.3V Supply Voltage • LVPECL or LVDS Output Configurations • Tri-State Output Select (OD, OS, OE) • Compliant to EC RoHS Directive Pb
Applications
PLL circuits for Clock Smoothing and Frequency Translation Description • SONET / SDH • OTN (Optical Transport Network) • 10 GbE (Gigabit Ethernet) • 10 GFC (Gigabit Fibre Channel) • 40 GbE & 100 GbE • Synchronous Ethernet • WiMax Standard GR-253-CORE ITU-T G.709/Y.1331 IEEE 802.3ae INCITS 364-2003 IEEE 802.3ba ITU-T G.
VS-705 Datasheet
