VS-70CRU02PbF

Ultrafast Rectifier

VS-70CRU02PbF Features

* Ultrafast recovery time

* Low forward voltage drop

* Up to 175 °C operating junction temperature

* Common-cathode diodes

* Low leakage current

* Optimized for power conversion: welding and industrial SMPS applications

* Compliant to RoHS Dire

VS-70CRU02PbF General Description

The VS-70CRU02PbF integrates two state of the art Vishay Semiconductors ultrafast recovery rectifiers in the common-cathode configuration. The planar structure of the diodes, and the platinum doping life-time control, provide a ultrasoft recovery current shape, together with the best overall perform.

VS-70CRU02PbF Datasheet (132.05 KB)

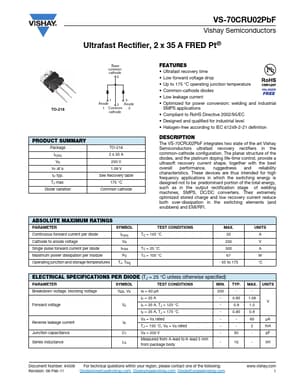

Preview of VS-70CRU02PbF PDF

Datasheet Details

Part number:

VS-70CRU02PbF

Manufacturer:

Vishay ↗

File Size:

132.05 KB

Description:

Ultrafast rectifier.
VS-70CRU02PbF Vishay Semiconductors Ultrafast Rectifier, 2 x 35 A FRED Pt® TO-218 Base common cathode 2 13 Anode 2 Anode 1 Common 2 cathode PR.
