VS-70TPS16 - Thyristor

Description

With TO-247 packaging Long-term stability Thyristor for line frequency Planar passivated chip Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Switching applications Line rectifying 50/60 Hz ABSOLUTE MAXIMUM RATINGS(

INCHANGE

📥 Download Datasheet

Datasheet Details

Part number	VS-70TPS16
Manufacturer	INCHANGE
File Size	158.75 KB
Description	Thyristor
Datasheet	VS-70TPS16 Datasheet

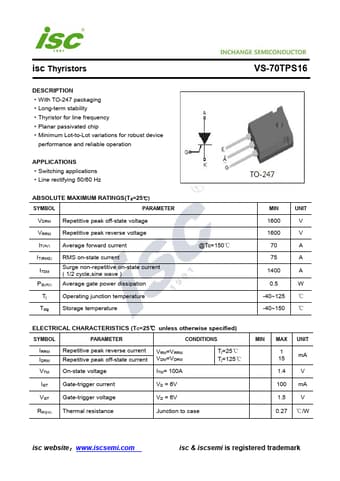

Additional preview pages of the VS-70TPS16 datasheet.
