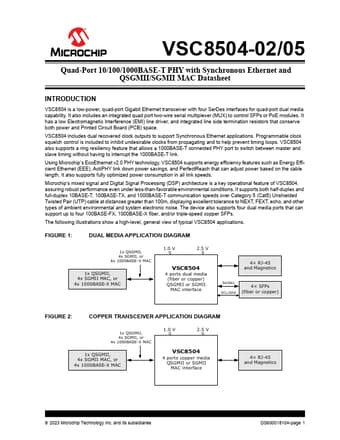

VSC8504-05, VSC8504-02 - Quad-Port 10/100/1000BASE-T PHY

Microchip

Datasheet Details

Part number	VSC8504-05, VSC8504-02
Manufacturer	Microchip ↗
File Size	2.96 MB
Description	Quad-Port 10/100/1000BASE-T PHY
Datasheet	VSC8504-02-Microchip.pdf
Note	This datasheet PDF includes multiple part numbers: VSC8504-05, VSC8504-02. Please refer to the document for exact specifications by model.

of the VSC8504 device. LOW POWER.
Low power consumption of approximately 425 mW per port in 1000BASE-T mode, 200 mW per port in 100BASE-TX mode, 225 mW per port in 10BASE-T mode, and less than 115 mW per port in 100BASE-FX and 1000BASE-X modes.
ActiPHY™ link down power savings.
PerfectReach™ smart cable reach algorithm.
IEEE® 802.3az-2010 Energy Efficient Ethernet idle power savings.
