dsPIC33CK512MP308

16-Bit Digital Signal Controllers

Microchip

dsPIC33CK512MP308 Features

* Five ADC Modules:

* 12-bit, 3.5 Msps ADC

* Up to 24 conversion channels

* 250 ns conversion latency

* Six DAC/Analog Comparator Modules:

* 12-bit DACs with hardware slope compensation

* 15 ns analog comparators

* Shared DAC/Analog Out

dsPIC33CK512MP308 Datasheet (10.80 MB)

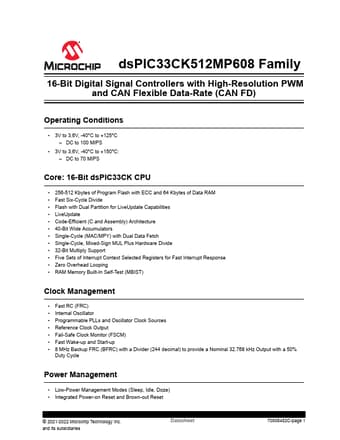

dsPIC33CK512MP308 Datasheet Preview — Preview of dsPIC33CK512MP308 PDF

Datasheet Details

Part number:

dsPIC33CK512MP308

Manufacturer:

Microchip ↗

File Size:

10.80 MB

Description:

16-bit digital signal controllers.
dsPIC33CK512MP608 Family 16-Bit Digital Signal Controllers with High-Resolution PWM and CAN Flexible Data-Rate (CAN FD) Operating Conditions

.
