dsPIC33EP512MU810, dsPIC33EP256MU806 Datasheet - Microchip

dsPIC33EP512MU810 16-bit Microcontrollers and Digital Signal Controllers

dsPIC33EPXXX(GP/MC/MU)806/810/814 and PIC24EPXXX(GP/GU)810/814 16-Bit Microcontrollers and Digital Signal Controllers with High-Speed PWM, USB and Advanced Analog Operating Conditions 3.0V to 3.6V, -40ºC to +125ºC, DC to 60 MIPS 3.0V to 3.6V, -40ºC to +85ºC, DC to 70 MIPS Core: 16-Bit dsPIC33E/PIC24E CPU Code-Efficient (C and Assembly) architecture Two 40-Bit Wide Accumulators Single-Cycle (MAC/MPY) with Dual Data Fetch Single-Cycle Mi.

dsPIC33EP512MU810 Features

* Two Independent ADC modules: - One ADC configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H - One 10-bit ADC, 1.1 Msps with four S&H - Eight S&H using both ADC 10-bit modules - 24 analog channels (64-pin devices) up to 32 analog channels (100/121/144-pin devices)

dsPIC33EP256MU806-Microchip.pdf

This datasheet PDF includes multiple part numbers: dsPIC33EP512MU810, dsPIC33EP256MU806. Please refer to the document for exact specifications by model.

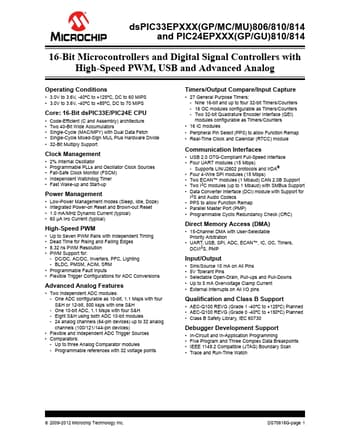

dsPIC33EP512MU810 Datasheet Preview Page 2 dsPIC33EP512MU810 Datasheet Preview Page 3

Datasheet Details

Part number:

dsPIC33EP512MU810, dsPIC33EP256MU806

Manufacturer:

Microchip ↗

File Size:

4.97 MB

Description:

16-bit microcontrollers and digital signal controllers.

Note:

This datasheet PDF includes multiple part numbers: dsPIC33EP512MU810, dsPIC33EP256MU806.
Please refer to the document for exact specifications by model.
