dsPIC33EP64GS505

16-Bit Digital Signal Controllers

Microchip

dsPIC33EP64GS505 Features

* High-Speed ADC module: - 12-bit with 4 dedicated SAR ADC cores and one shared SAR ADC core - Configurable resolution (up to 12-bit) for each ADC core - Up to 3.25 Msps conversion rate per channel at 12-bit resolution - 12 to 22 single-ended inputs - Dedicated result buffer for each analog

dsPIC33EP64GS505 Datasheet (2.90 MB)

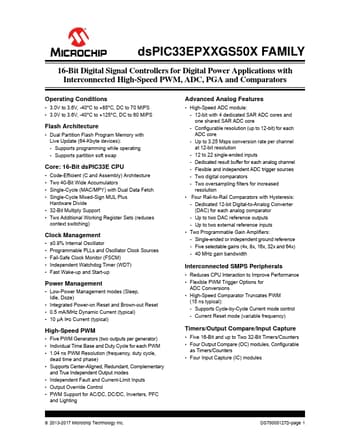

dsPIC33EP64GS505 Datasheet Preview — Preview of dsPIC33EP64GS505 PDF

Datasheet Details

Part number:

dsPIC33EP64GS505

Manufacturer:

Microchip ↗

File Size:

2.90 MB

Description:

16-bit digital signal controllers.
dsPIC33EPXXGS50X FAMILY 16-Bit Digital Signal Controllers for Digital Power Applications with Interconnected High-Speed PWM, ADC, PGA and Comparators .
