25AA640 Datasheet - MicrochipTechnology

25AA640 - 64K SPI Bus Serial EEPROM

The Microchip Technology Inc.

25AA640/25LC640 (25XX640 *) is a 64K bit Serial Electrically Erasable PROM [EEPROM].

The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus.

The bus signals required are a clock input (SCK) plus separate data in (SI) and data out

25AA640 Features

* Low-power CMOS technology - Write current: 3 mA typical - Read current: 500 µA typical - Standby current: 500 nA typical

* 8192 x 8 bit organization

* 32 byte page

* Write cycle time: 5 ms max.

* Self-timed ERASE and WRITE cycles

* Block write protec

25AA640_MicrochipTechnology.pdf

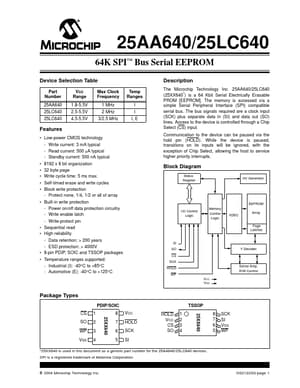

Preview of 25AA640 PDF
25AA640 Datasheet Preview Page 2 25AA640 Datasheet Preview Page 3

Datasheet Details

Part number:

25AA640

Manufacturer:

Microchip ↗Technology

File Size:

232.09 KB

Description:

64k spi bus serial eeprom.
