8 Signal Descriptions 8 Signal Assignments 9 Package Dimensions 12 Architecture 15 Device and Array Organization 16 Asynchronous Interface Bus Operation 18 Asynchronous Enable/Standby 18 Asynchronous Commands 18 Asynchronous Addresses 20 Asynchronous Data Input 21 Asynchronous Data Output 22 Write Protect# 23 Ready/Busy# 23 Device Initialization 28 Command Definitions 29 Reset Operations 32 RESET (FFh) 32 Identification Operations 33 READ ID (90h) 33 READ ID Parameter Tables
Features
- NAND Flash Memory

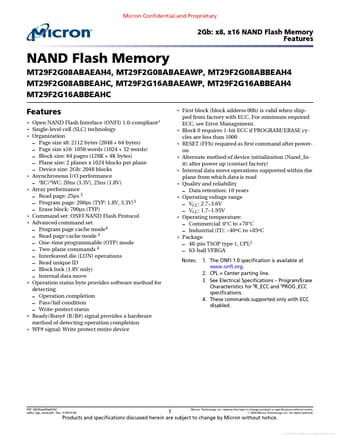

MT29F2G08ABAEAH4, MT29F2G08ABAEAWP, MT29F2G08ABBEAH4 MT29F2G08ABBEAHC, MT29F2G16ABAEAWP, MT29F2G16ABBEAH4 MT29F2G16ABBEAHC Features.
- Open NAND Flash Interface (ONFI) 1.0-compliant1.
- Single-level cell (SLC) technology.
- Organization.
- Page size x8: 2112 bytes (2048 + 64 bytes).
- Page size x16: 1056 words (1024 + 32 words).
- Block size: 64 pages (128K + 4K bytes).
- Plane size: 2 planes x 1024 blocks per plane.
- De.
