ME2183 Datasheet - Microne

1.0MHZ Synchronous Step-Up DC/DC Converter

ME2183 Features

* High efficiency.( up to 93%)

* Up to 90% Efficiency at IOUT=2A VOUT = 5V from 3.3V Input.

* Guaranteed 2.5A Output Current at VOUT = 5V from 3.3V Input

* Synchronous and internal P-ch Power MOSFET and N-ch power MOSFET ,No Schottky Diode Required

* Oscillator frequency：1.0MHz

* R

ME2183 General Description

The ME2183 is synchronous， 2A，1.0MHZ step-up DC-DC Converter ， which mainly consists of a reference voltage source, an oscillation circuit, an error amplifier, a phase compensation circuit, a PWM / PFM switching control circuit and an adjustable output current limit circuit. With an internal low-ON-.

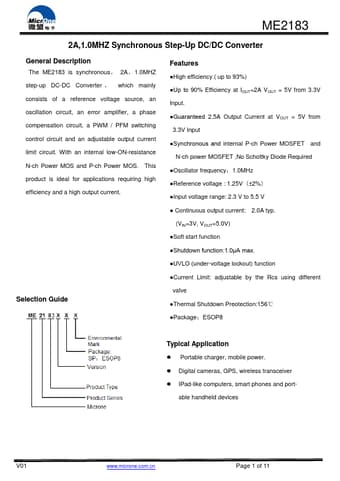

ME2183 Datasheet (429.32 KB)

ME2183 Datasheet Preview — Preview of ME2183 PDF

Datasheet Details

Part number:

ME2183

Manufacturer:

Microne

File Size:

429.32 KB

Description:

1.0mhz synchronous step-up dc/dc converter.
