ME2186 Datasheet - Microne

Synchronous PFM Step-up DC/DC Converter

ME2186 Features

* Low ripple and low noise

* Operating voltage range：0.9V~6.0V

* Output voltage range：1.8V~6.0V(step 0.1V)

* Output voltage accuracy：±2%

* Output Current：If VIN=3.0V and VOUT=5.0V,then IOUT=500mA

* Low start voltage：≤0.9V(at IOUT =1mA)

* Maximum oscillator frequency：330KH

ME2186 General Description

ME2186 Series is a Synchronous PFM Step-up DC/DC converter IC with low supply current by CMOS process. High frequency noise that occurs during switching is reduced by using advanced circuit designed, output voltage is programmable in 0.1V steps between 1.8~6.0V.A low ripple, high efficiency step-up .

ME2186 Datasheet (271.52 KB)

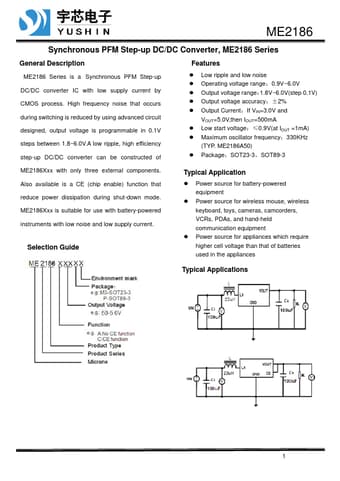

ME2186 Datasheet Preview — Preview of ME2186 PDF

Datasheet Details

Part number:

ME2186

Manufacturer:

Microne

File Size:

271.52 KB

Description:

Synchronous pfm step-up dc/dc converter.
