ME3101A33 - 500mA Synchronous Step-Down DC/DC Converters

This page provides the datasheet information for the ME3101A33, a member of the ME3101 500mA Synchronous Step-Down DC/DC Converters family.

Datasheet Summary

Description

type DC/DC converters with a built-in 0.6Ω P-channel driver transistor and 0.7Ω N-channel switching transistor, designed to allow the use of ceramic capacitors.

📥 Download Datasheet

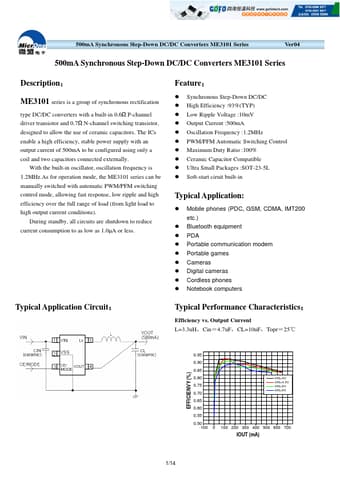

Datasheet preview – ME3101A33

Datasheet Details

Part number ME3101A33
Manufacturer Microne
File Size 522.54 KB
Description 500mA Synchronous Step-Down DC/DC Converters
Datasheet download datasheet ME3101A33 Datasheet
Additional preview pages of the ME3101A33 datasheet.

📁 Similar Datasheet

  • ME3102 - 1A Synchronous Buck DC-DC Converter (ChipSourceTek)
  • ME3108 - 2A COT fast response synchronous buck DC/DC converter (ChipSourceTek)
  • ME3110 - Synchronous rectification buck DC-DC converter (ChipSourceTek)
  • ME3113 - 3A load synchronous rectification DC-DC buck converter (ChipSourceTek)
  • ME3113B - BLUE SIDE BACKLIGHT (Micro Electronics)
  • ME3123 - 3A load synchronous rectification DC-DC buck converter (ChipSourceTek)
  • ME3125 - 5A load synchronous rectification DC-DC buck converter (ChipSourceTek)
  • ME3148 - 160KHz Buck DC/DC Converter (ChipSourceTek)
  • ME3149 - 150KHz constant voltage loop Buck DC-DC converter (YUSHIN)
  • ME3-ETO - Electrochemical Sensor (Winsen)
Other Datasheets by Microne
  • ME3101A10 - 500mA Synchronous Step-Down DC/DC Converters
  • ME3101A12 - 500mA Synchronous Step-Down DC/DC Converters
  • ME3101A18 - 500mA Synchronous Step-Down DC/DC Converters
  • ME3101 - 500mA Synchronous Step-Down DC/DC Converters
  • ME3103 - 1A Step-Down DC-DC Converter
  • ME3104 - 2A Synchronous Buck DC-DC Converter
  • ME3107 - Ultra-Low Quiescent 760nA Synchronous Step-Down DC/DC Converter
  • ME3109 - 3A COT Synchronous Step-Down DC/DC Converter

Full PDF Text Transcription

Click to expand full text
500mA Synchronous Step-Down DC/DC Converters ME3101 Series Ver04 500mA Synchronous Step-Down DC/DC Converters ME3101 Series Description： ME3101 series is a group of synchronous rectification type DC/DC converters with a built-in 0.6Ω P-channel driver transistor and 0.7Ω N-channel switching transistor, designed to allow the use of ceramic capacitors. The ICs enable a high efficiency, stable power supply with an output current of 500mA to be configured using only a coil and two capacitors connected externally. With the built-in oscillator, oscillation frequency is 1.2MHz.
