52301 INSTRUMENTATION AMPLIFIER (PRELIMINARY)

The MII 52301 is a high accuracy hybrid-circuit instrumentation amplifier designed for signal conditioning requirements where very high performance is desired. The input stage uses ultra-low drift, low noise technology to provide exceptional input characteristics. PARAMETER Gain Equation: A, = 1 + 4.

52301 Features

* +25°C to +180°C Operation Ultra-Low Voltage Drift Low Offset Voltage Low Nonlinearity Low Noise High CMR High Input Impedance Applications:

* Amplification of signals from sources such as: Strain Gages Thermocouplers RTDs Lo

52301_MicropacIndustries.pdf

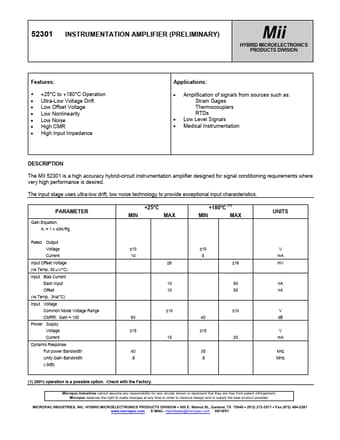

52301 Datasheet Preview — Preview of 52301 PDF

Datasheet Details

Part number:

52301

Manufacturer:

Micropac Industries

File Size:

212.06 KB

Description:

Instrumentation amplifier (preliminary).
