52305C Common Mode Chokes

52305C Description

www.murata-ps.com 5200 Series Common Mode Chokes .

52305C Features

* RoHS compliant Toroidal construction Up to 3.5A IDC Inductance range from 3mH to 10mH Small footprint UL 94V-0 packaging materials Low DC resistance Guaranteed 3.0mm creepage and clearance between windings PRODUCT OVERVIEW The 5200 series is a range of through-hole common mode chokes designed to att

52305C Applications

* SELECTION GUIDE Order Code 52305C 52505C 52705C 52106C Inductance Nom. mH 3.0 5.0 7.0 10.0 Range mH 2.24-4.00 3.60-6.60 4.90-9.00 6.90-12.8 ABSOLUTE MAXIMUM RATINGS Operating free air temperature range Storage temperature range Isolation voltage SOLDERING INFORMATION1 Peak wave solder tempera

📥 Download Datasheet

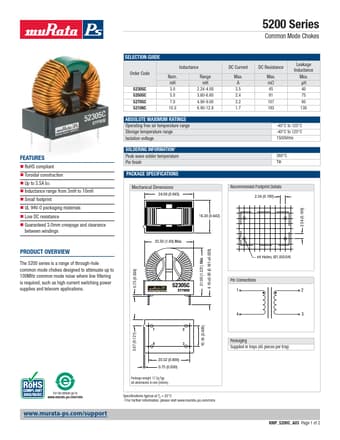

Preview of 52305C PDF
datasheet Preview Page 2

Datasheet Details

Part number
52305C
Manufacturer
muRata
File Size
126.24 KB
Datasheet
52305C-muRata.pdf
Description
Common Mode Chokes
