APT20GN60BDQ1 Datasheet - Microsemi Corporation

APT20GN60BDQ1 High Speed PT IGBT

TYPICAL PERFORMANCE CURVES APT20GN60BDQ1 APT20GN60BD_SDQ1(G) APT20GN60SDQ1 APT20GN60BDQ1(G) APT20GN60SDQ1(G) 600V G Denotes RoHS Compliant, Pb Free Terminal Finish. Utilizing the latest Field Stop and Trench Gate technologies, these IGBT's have ultra low VCE(ON) and are ideal for low frequency applications that require absolute minimum conduction loss. Easy paralleling is a result of very tight parameter distribution and a slightly positive VCE(ON) temperature coefficient. Low gate charge .

APT20GN60BDQ1_MicrosemiCorporation.pdf

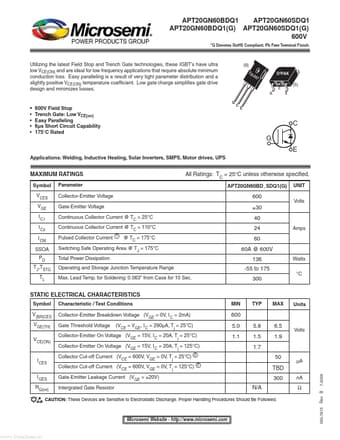

Preview of APT20GN60BDQ1 PDF
APT20GN60BDQ1 Datasheet Preview Page 2 APT20GN60BDQ1 Datasheet Preview Page 3

Datasheet Details

Part number:

APT20GN60BDQ1

Manufacturer:

Microsemi ↗ Corporation

File Size:

178.37 KB

Description:

High speed pt igbt.
