APT20GN60K Datasheet - Microsemi Corporation

APT20GN60K High Speed PT IGBT

TYPICAL PERFORMANCE CURVES APT20GN60K(G) 600V APT20GN60K APT20GN60KG G Denotes RoHS Compliant, Pb Free Terminal Finish. Utilizing the latest Field Stop and Trench Gate technologies, these IGBT's have ultra low VCE(ON) and are ideal for low frequency applications that require absolute minimum conduction loss. Easy paralleling is a result of very tight parameter distribution and a slightly positive VCE(ON) temperature coefficient. Low gate charge simplifies gate drive design and minimiz.

APT20GN60K_MicrosemiCorporation.pdf

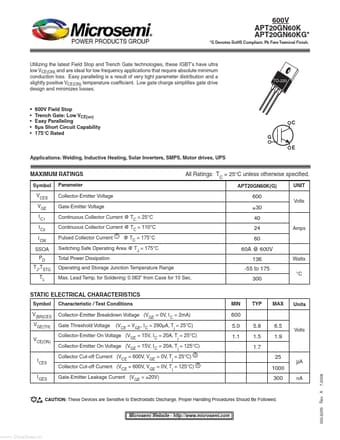

Preview of APT20GN60K PDF
APT20GN60K Datasheet Preview Page 2 APT20GN60K Datasheet Preview Page 3

Datasheet Details

Part number:

APT20GN60K

Manufacturer:

Microsemi ↗ Corporation

File Size:

184.49 KB

Description:

High speed pt igbt.
