APT200GN60B2G Datasheet - Microsemi Corporation

APT200GN60B2G Field Stop IGBT

www.DataSheet4U.com APT200GN60B2G 600V, VCE(ON) = 1.45V Typical Field Stop IGBT Utilizing the latest Field Stop and Trench Gate technologies, these IGBT’s have ultra low VCE(ON) and are ideal for low frequency applications that require absolute minimum conduction loss. Easy paralleling is a result of very tight parameter distribution and a slightly positive VCE(ON) temperature coefficient. A built-in gate resistor ensures extremely reliable operation, even in the event of a short circuit fault..

APT200GN60B2G_MicrosemiCorporation.pdf

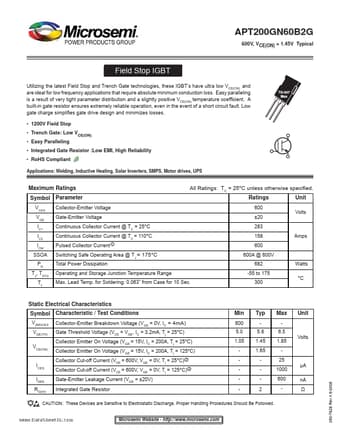

Preview of APT200GN60B2G PDF
APT200GN60B2G Datasheet Preview Page 2 APT200GN60B2G Datasheet Preview Page 3

Datasheet Details

Part number:

APT200GN60B2G

Manufacturer:

Microsemi ↗ Corporation

File Size:

186.98 KB

Description:

Field stop igbt.
