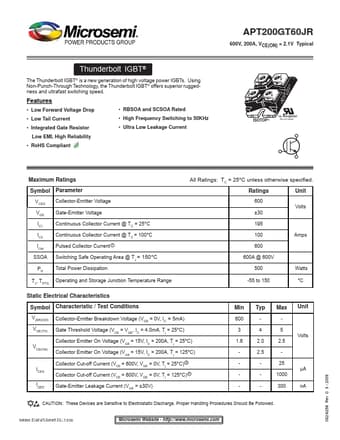

APT200GT60JR - Thunderbolt IGBT

Microsemi Corporation

Datasheet Details

Part number	APT200GT60JR
Manufacturer	Microsemi ↗ Corporation
File Size	227.41 KB
Description	Thunderbolt IGBT
Datasheet	APT200GT60JR_MicrosemiCorporation.pdf

Low Forward Voltage Drop.
Low Tail Current.
Integrated Gate Resistor Low EMI, High Reliability.
RoHS Compliant.
RBSOA and SCSOA Rated.
High Frequency Switching to 50KHz.
Ultra Low Leakage Current S ISOTOP ® OT 22 7 "UL Recognized" file # E145592 Maximum Ratings Symbol Parameter VCES VGE IC1 IC2 ICM SSOA PD TJ, TSTG Collector-Emitter Voltage Gate-Emitter Voltage Continuous Collector Current @ TC = 25°C Continuous Collector Curr.
