APT20GN60BDQ1G, APT20GN60BDQ1 Datasheet - Microsemi Corporation

APT20GN60BDQ1G, APT20GN60BDQ1, High Speed PT IGBT

TYPICAL PERFORMANCE CURVES APT20GN60BDQ1 APT20GN60BD_SDQ1(G) APT20GN60SDQ1 APT20GN60BDQ1(G) APT20GN60SDQ1(G) 600V *G Denotes RoHS Compliant, Pb F.

APT20GN60BDQ1_MicrosemiCorporation.pdf

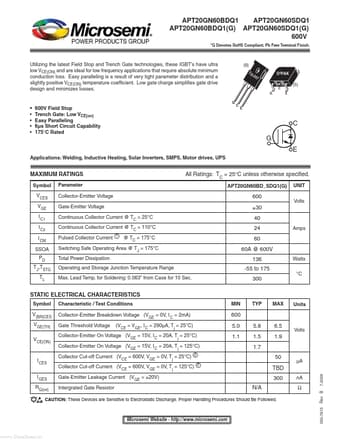

APT20GN60BDQ1G Datasheet Preview — This datasheet PDF includes multiple part numbers: APT20GN60BDQ1G, APT20GN60BDQ1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

APT20GN60BDQ1G, APT20GN60BDQ1

Manufacturer:

Microsemi ↗ Corporation

File Size:

178.37 KB

Description:

High Speed PT IGBT

Note:

This datasheet PDF includes multiple part numbers: APT20GN60BDQ1G, APT20GN60BDQ1.
Please refer to the document for exact specifications by model.

Applications

* that require absolute minimum conduction loss. Easy paralleling is a result of very tight parameter distribution and a slightly positive VCE(ON) temperature coefﬁcient. Low gate charge simpliﬁes gate drive design and minimizes losses. G (B) TO -2 47 D3PAK (S) C G E
* 600V Field Stop
