APT8M100B N-Channel MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

APT8M100B APT8M100S 1000V, 8A, 1.80Ω Max N-Channel MOSFET Power MOS 8™ is a high speed, high voltage N-channel switch-mode power MOSFET.A proprietar.

📥 Download Datasheet

Preview of APT8M100B PDF

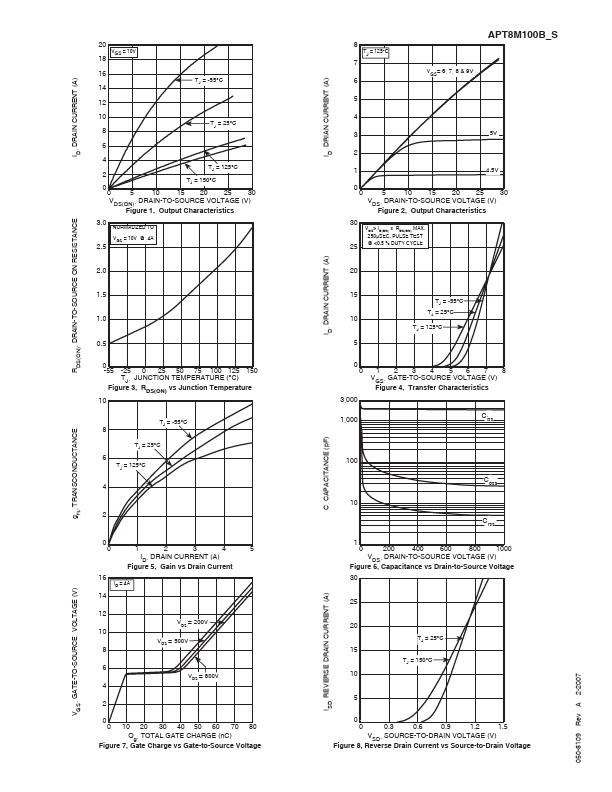

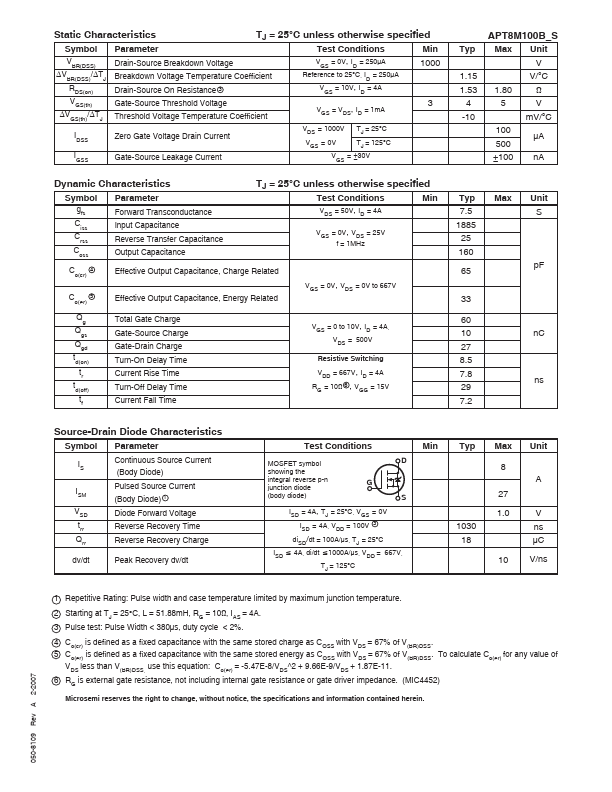

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Fast switching with low EMI/RFI
* Low RDS(on)
* Ultra low Crss for improved noise immunity
* Low gate charge
* Avalanche energy rated

Applications

* PFC and other boost converter
* Buck converter
* Two switch forward (asymmetrical bridge)
* Single switch forward
* Flyback
* Inverters www. DataSheet4U. com Absolute Maximum Ratings Symbol ID IDM VGS EAS IAR Parameter Continuous Drain Current @ TC =
