SD1070 RF & MICROWAVE TRANSISTORS

SD1070 RF & MICROWAVE TRANSISTORS RF PRODUCTS DIVISION P RODUCT P REVIEW .
KEY FEATURES W W W .

SD1070_MicrosemiCorporation.pdf

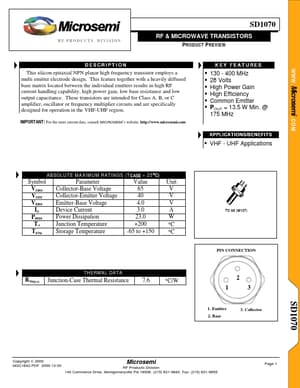

Preview of SD1070 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

SD1070

Manufacturer:

Microsemi ↗ Corporation

File Size:

63.98 KB

Description:

RF & MICROWAVE TRANSISTORS

Features

* W W W . Microsemi . COM This silicon epitaxial NPN planar high frequency transistor employs a multi emitter electrode design. This feature together with a heavily diffused base matrix located between the individual emitters results in high RF current handling capability, high power gain, low base

Applications

* BENEFITS APPLICATIONS/BENEFITS ! VHF - UHF Applications ABSOLUTE MAXIMUM RATINGS (TCASE = 25°C) Symbol VCBO VCES VEBO IC PDISS TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Device Current Power Dissipation Junction Temperature Storage Temperature Value
