1N4583A-1, 1N4565 Datasheet - Microsemi

1N4583A-1 TEMPERATURE COMPENSATED ZENER REFERENCE DIODES

1N4565A-1 THRU 1N4584A-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS 1N4565 thru 1N4584A PER MIL-PRF-19500/452 and 6.4 VOLT NOMINAL ZENER VOLTAGE + 5% TEMPERATURE COMPENSATED ZENER REFERENCE DIODES 1N4565A-1 thru 1N4584A-1 METALLURGICALLY BONDED MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ +50°C Power Derating: 4 mW / °C above +50°C REVERSE LEAKAGE CURRENT lR = 2µA @ 25°C & VR .

1N4565-Microsemi.pdf

This datasheet PDF includes multiple part numbers: 1N4583A-1, 1N4565. Please refer to the document for exact specifications by model.

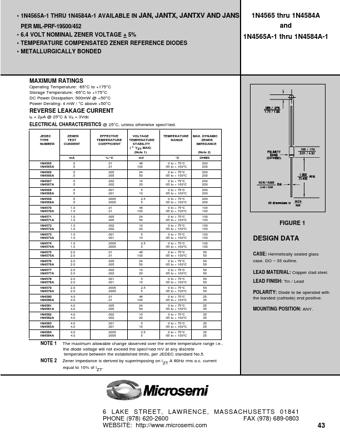

1N4583A-1 Datasheet Preview Page 2

Datasheet Details

Part number:

1N4583A-1, 1N4565

Manufacturer:

Microsemi ↗

File Size:

245.96 KB

Description:

Temperature compensated zener reference diodes.

Note:

This datasheet PDF includes multiple part numbers: 1N4583A-1, 1N4565.
Please refer to the document for exact specifications by model.
