1N5239BUR-1
265.38kb

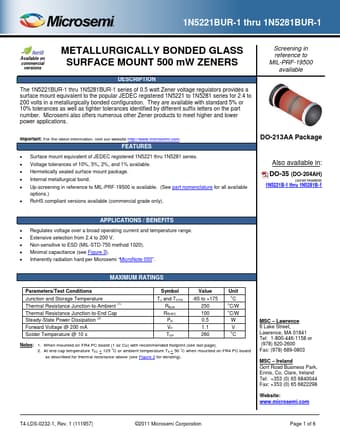

Metallurgically bonded glass surface mount 500mw zeners. The 1N5221BUR-1 thru 1N5281BUR-1 series of 0.5 watt Zener voltage regulators provides a surface mount equivalent to the popular JEDEC
TAGS
📁 Related Datasheet
1N5239BUR-1 - 500mW Zener Diode
(VPT)
1N5221BUR-1 thru 1N5272BUR-1
500 mW Zener Diode Series
Features
• JEDEC registered 1N5221 thru 1N5272 series • Standard voltage tolerances are plus/mi.
1N5239B - SILICON ZENER DIODES
(PAN JIT)
1N5221B~1N5266B
SILICON ZENER DIODES
VOLTAGE 2.4 to 68 Volt
POWER
500 mWatt
FEATURES
• Planar Die construction • 500mW Power Dissipation • Ideall.
1N5239B - Zener Diodes
(ON Semiconductor)
Zener Diodes 1N5221B - 1N5252B
DATA SHEET .onsemi.
ABSOLUTE MAXIMUM RATINGS (Note 1) Values are at TA = 25°C unless otherwise noted.
Symbol
.
1N5239B - 500mW ZENER DIODE
(WON-TOP)
®
WON-TOP ELECTRONICS
Features
Planar Die Construction 500mW Power Dissipation 2.4V – 47V Nominal Zener Voltage 5% Standard Vz Tolerance Low.
1N5239B - 500mW EPITAXIAL ZENER DIODE
(Diodes)
OBSOLETE – PART DISCONTINUED
PART OBSOLETE - USE MMSZ52xxB
1N5221B - 1N5267B
500mW EPITAXIAL ZENER DIODE SPICE MODEL: spice model number 1, spice m.
1N5239B - Small Signal Zener Diodes
(Vishay)
.vishay.
1N5221B to 1N5267B
Vishay Semiconductors
Small Signal Zener Diodes
PRIMARY CHARACTERISTICS
PARAMETER
VALUE
VZ range nom.
2.4 to .
1N5239B - SILICON ZENER DIODES
(Central Semiconductor)
1N5221B THRU 1N5278B
SILICON ZENER DIODES 500mW, 2.4 THRU 170 VOLT
5% TOLERANCE
w w w. c e n t r a l s e m i . c o m
DESCRIPTION: The CENTRAL SEMICON.
1N5239B - Zener Diodes
(Fairchild Semiconductor)
1N5221B - 1N5263B — Zener Diodes
1N5221B - 1N5263B Zener Diodes
Tolerance = 5%
January 2016
DO-35 Glass case
COLOR BAND DENOTES CATHODE
Absolute M.
1N5239B - Voltage regulator diodes
(NXP)
DISCRETE SEMICONDUCTORS
DATA SHEET
M3D176
1N5225B to 1N5267B Voltage regulator diodes
Product specification Supersedes data of April 1992 1996 Apr 2.
1N5239B - 500mW 5% DO-35 ZENER DIODE
(Rectron Semiconductor)
RECTRON
SEMICONDUCTOR
TECHNICAL SPECIFICATION
1N5223B THRU 1N5261B
500mW 5% DO-35 ZENER DIODE
Absolute Maximun Ratings (Ta=25oC)
Items Power Dissipa.
