1N5711-1 - Schottky Barrier Diode

Name: 1N5711-1
SKU: 1N5711-1-1590795

Microsemi

📥 Download Datasheet

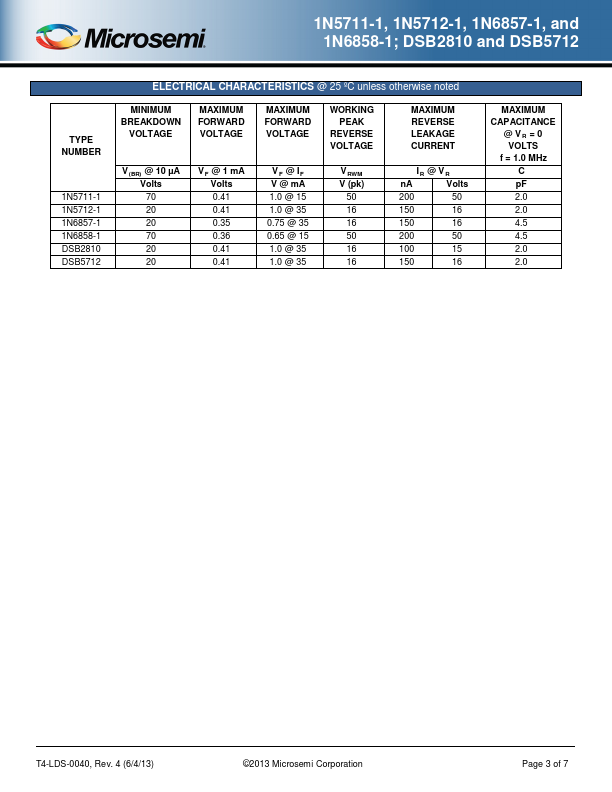

1N5711-1 Datasheet Preview — Preview of 1N5711-1 PDF

Datasheet Details

Part number	1N5711-1
Manufacturer	Microsemi
File Size	421.22 KB
Description	Schottky Barrier Diode
Datasheet	1N5711-1-Microsemi.pdf

1N5711-1 Product details

Description

This Schottky barrier diode is metallurgically bonded and offers military grade qualifications for high-reliability applications on “1N” prefixed numbers.

Features

JEDEC registered 1N5711-1, 1N5712-1, 1N6857-1, and 1N6858-1 numbers.
Metallurgically bonded.
JAN, JANTX, JANTXV and commercial qualifications also available per MIL-PRF-19500/444 on “1N” numbers only. (See Part Nomenclature for all available options).
RoHS compliant versions available (commercial grade only).
