1N5750B-1

Axial-Leaded 500 mW Zener Diodes

Microsemi

1N5750B-1 Features

* JEDEC registered 1N5728 to 1N5757 series

* Internal metallurgical bond option available by adding a “-1” suffix

* Options for screening in accordance with MILPRF-19500 for JAN, JANTX, JANTXV, and JANS are available by adding MQ, MX, MV, or MSP prefixes respectively to part

1N5750B-1 General Description

The 1N5728 thru 1N5757 series of 0.5 watt Zener Voltage Regulators provides a selection from 4.7 to 75 volts in standard 5% tolerances as well as tighter tolerances identified by a “C” or “D” suffix letter on the part number. These glass axial-leaded DO-35 Zeners are also available with an internal-.

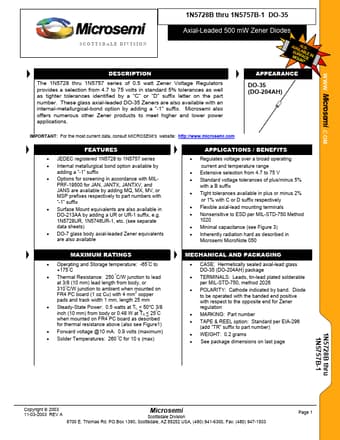

1N5750B-1 Datasheet (186.23 KB)
