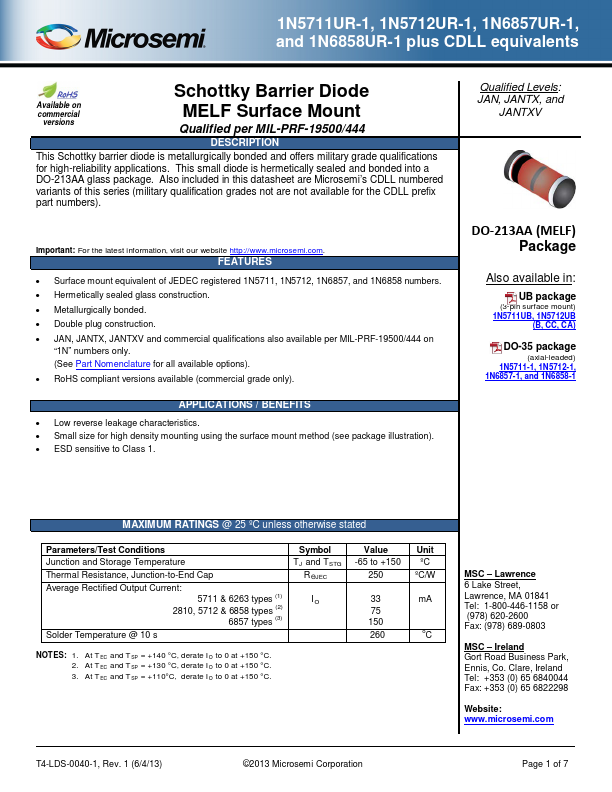

1N6857UR-1 Datasheet Preview — Preview of 1N6857UR-1 PDF

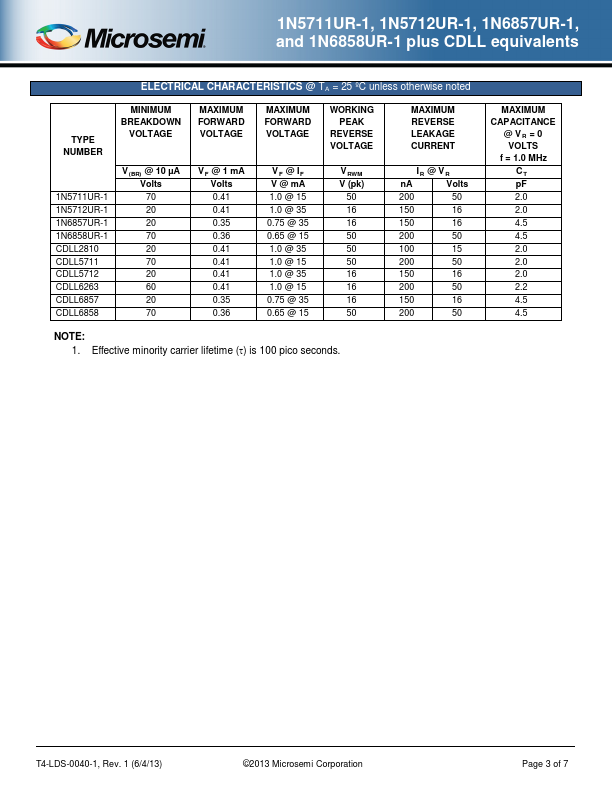

datasheet Preview Page 2

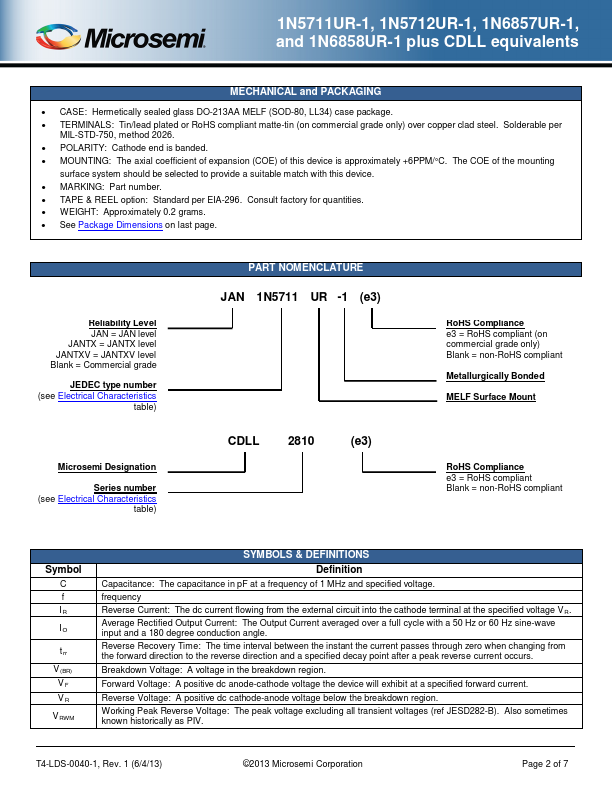

datasheet Preview Page 3

Datasheet Details

Part number	1N6857UR-1
Manufacturer	Microsemi
File Size	460.43 KB
Description	Schottky Barrier Diode
Datasheet	1N6857UR-1-Microsemi.pdf

1N6857UR-1 Product details

Description

This Schottky barrier diode is metallurgically bonded and offers military grade qualifications for high-reliability applications.

Features

Surface mount equivalent of JEDEC registered 1N5711, 1N5712, 1N6857, and 1N6858 numbers.
Hermetically sealed glass construction.
Metallurgically bonded.
Double plug construction.
JAN, JANTX, JANTXV and commercial qualifications also available per MIL-PRF-19500/444 on “1N” numbers only. (See Part Nomenclature for all available options).
RoHS compliant versions available (commercial grade only).
