1N757A-1, 1N746A-1 - Silicon 500 mW Zener Diodes

Microsemi

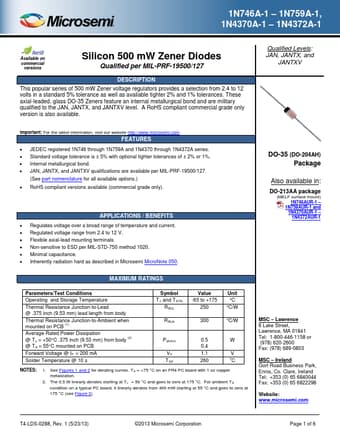

1N757A-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N757A-1, 1N746A-1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	1N757A-1, 1N746A-1
Manufacturer	Microsemi ↗
File Size	653.10 KB
Description	Silicon 500 mW Zener Diodes
Datasheet	1N746A-1-Microsemi.pdf
Note	This datasheet PDF includes multiple part numbers: 1N757A-1, 1N746A-1. Please refer to the document for exact specifications by model.

1N757A-1 Product details

Description

This popular series of 500 mW Zener voltage regulators provides a selection from 2.4 to 12 volts in a standard 5% tolerance as well as available tighter 2% and 1% tolerances.

Features

JEDEC registered 1N746 through 1N759A and 1N4370 through 1N4372A series.
Standard voltage tolerance is ± 5% with optional tighter tolerances of ± 2% or 1%.
Internal metallurgical bond.
JAN, JANTX, and JANTXV qualifications are available per MIL-PRF-19500/127. (See part nomenclature for all available options.
