1N757AUR-1, 1N746AUR-1 - Silicon Zener Diode

VPT

📥 Download Datasheet

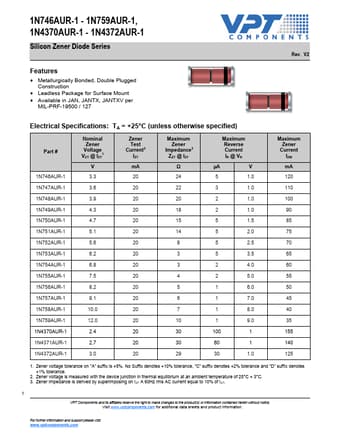

1N757AUR-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N757AUR-1, 1N746AUR-1. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	1N757AUR-1, 1N746AUR-1
Manufacturer	VPT
File Size	534.53 KB
Description	Silicon Zener Diode
Datasheet	1N746AUR-1-VPT.pdf
Note	This datasheet PDF includes multiple part numbers: 1N757AUR-1, 1N746AUR-1. Please refer to the document for exact specifications by model.

1N757AUR-1 Product details

Description

at any time, without notice.

Features

Metallurgically Bonded, Double Plugged Construction.
Leadless Package for Surface Mount.
Available in JAN, JANTX, JANTXV per MIL-PRF-19500 / 127 Rev. V2 Electrical Specifications: TA = +25°C (unless otherwise specified) Part # 1N746AUR-1 Nominal Zener Voltage VZT @ IZT1 V 3.3 Zener Test Current2 IZT mA 20 Maximum Zener Impedance3 ZZT @ IZT Ω 24 Maximum Reverse Current IR @ VR µA V 5 1.0 1N747AUR-1 3.6 20 22 3 1.0 1N748AUR-1 3.9 20 20 2 1.0 1N74.
