1N935A-1 - Temperature Compensated Zener Reference Diodes

This page provides the datasheet information for the 1N935A-1, a member of the 1N935B-1 Temperature Compensated Zener Reference Diodes family.

Datasheet Summary

Description

The popular 1N935B-1 through 1N938B-1 series of Zero-TC (Temperature Compensated) reference diodes provides a selection of 9.0 V nominal voltages and temperature coefficients to as low as 0.001 %/oC for minimal voltage change with temperature when operated at 7.5 mA.

Features

JEDEC registered 1N935 through 1N938 number series.
Standard reference voltage of 9.0V +/- 5%.
Temperature compensated.
Internal metallurgical bond.
Double plug construction.
JAN, JANTX, JANTXV and JANS qualification are availab.

Datasheet Details

Part number	1N935A-1
Manufacturer	Microsemi
File Size	438.91 KB
Description	Temperature Compensated Zener Reference Diodes
Datasheet	1N935A-1 Datasheet
Additional preview pages of the 1N935A-1 datasheet.

📁 Similar Datasheet

1N935A - 9.0 VOLT NOMINAL ZENER VOLTAGE (Compensated Deuices Incorporated)

1N935A - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Digitron Semiconductors)

1N935A - Silicon Zener Diode (Mootorola)

1N935 - 9.0 VOLT NOMINAL ZENER VOLTAGE (Compensated Deuices Incorporated)

1N935 - Silicon Zener Diode (Mootorola)

1N935 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Digitron Semiconductors)

1N935B - 9.0 VOLT NOMINAL ZENER VOLTAGE (Compensated Deuices Incorporated)

1N935B - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Digitron Semiconductors)

1N935B - Silicon Zener Diode (Mootorola)

1N935B-M - DIODE (DSI)

Full PDF Text Transcription

Click to expand full text

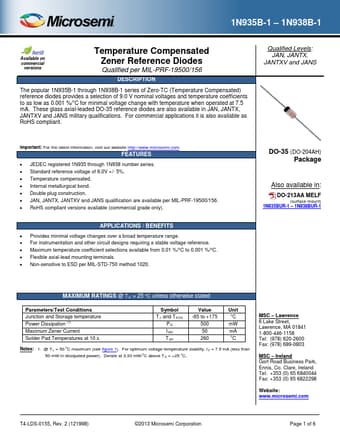

1N935B-1 – 1N938B-1 Available on commercial versions Temperature Compensated Zener Reference Diodes Qualified per MIL-PRF-19500/156 DESCRIPTION The popular 1N935B-1 through 1N938B-1 series of Zero-TC (Temperature Compensated) reference diodes provides a selection of 9.0 V nominal voltages and temperature coefficients to as low as 0.001 %/oC for minimal voltage change with temperature when operated at 7.5 mA. These glass axial-leaded DO-35 reference diodes are also available in JAN, JANTX, JANTXV and JANS military qualifications. For commercial applications it is also available as RoHS compliant. Qualified Levels: JAN, JANTX, JANTXV and JANS Important: For the latest information, visit our website http://www.microsemi.com. FEATURES • JEDEC registered 1N935 through 1N938 number series.
