1N936A-1 Datasheet - Microsemi

1N936A-1 Temperature Compensated Zener Reference Diodes

The popular 1N935B-1 through 1N938B-1 series of Zero-TC (Temperature Compensated) reference diodes provides a selection of 9.0 V nominal voltages and temperature coefficients to as low as 0.001 %/oC for minimal voltage change with temperature when operated at 7.5 mA. These glass axial-leaded DO-35 .

1N936A-1 Features

* JEDEC registered 1N935 through 1N938 number series.

* Standard reference voltage of 9.0V +/- 5%.

* Temperature compensated.

* Internal metallurgical bond.

* Double plug construction.

* JAN, JANTX, JANTXV and JANS qualification are availab

1N936A-1 Datasheet (438.91 KB)

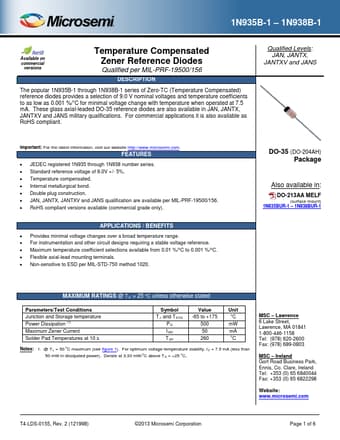

Preview of 1N936A-1 PDF

Datasheet Details

Part number:

1N936A-1

Manufacturer:

Microsemi ↗

File Size:

438.91 KB

Description:

Temperature compensated zener reference diodes.
