1N941

11.7 Volt Temperature Compensated Zener Reference Diodes

Microsemi

1N941 Features

* JEDEC registered 1N941 thru 1N946B series

* Standard reference voltage of 11.7 V +/- 5% with tighter tolerances also available

* 1N941B, 942B, 943B, 944B, 945B also have military qualification to MIL-PRF-19500/157 up to the JANTXV level by adding JAN, JAN

1N941 General Description

The popular 1N941 thru 1N946B series of Zero-TC Reference Diodes provides a selection of 11.7 V nominal voltages and temperature coefficients to as low as 0.0002%/oC for minimal voltage change with temperature when operated at 7.5 mA. These glass axial-leaded DO-7 reference diodes are also available.

1N941 Datasheet (176.58 KB)

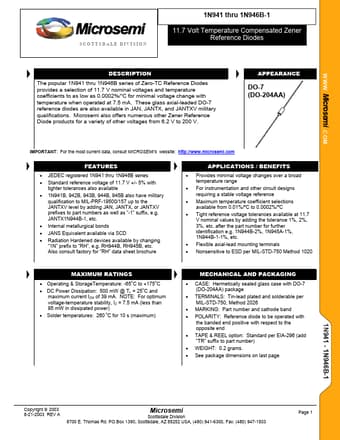

1N941 Datasheet Preview — Preview of 1N941 PDF

Datasheet Details

Part number:

1N941

Manufacturer:

Microsemi ↗

File Size:

176.58 KB

Description:

11.7 volt temperature compensated zener reference diodes.
