Datasheet Details
Part number:
1N945A-1, 1N941-1
Manufacturer:
File Size:
195.19 KB
Description:
11.7 volt temperature compensated zener reference diodes.
Note:
This datasheet PDF includes multiple part numbers: 1N945A-1, 1N941-1.
Please refer to the document for exact specifications by model.

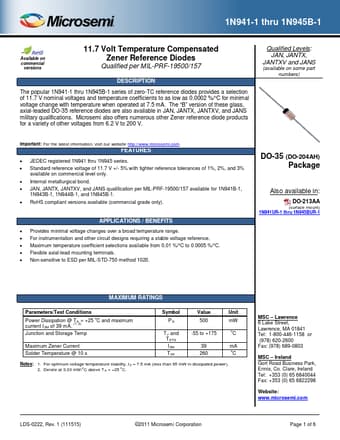

1N945A-1, 1N941-1, 11.7 Volt Temperature Compensated Zener Reference Diodes
The popular 1N941-1 thru 1N945B-1 series of zero-TC reference diodes provides a selection of 11.7 V nominal voltages and temperature coefficients to as low as 0.0002 %/oC for minimal voltage change with temperature when operated at 7.5 mA.
The “B” version of these glass, axial-leaded DO-35 reference
1N945A-1 Features
* JEDEC registered 1N941 thru 1N945 series.
* Standard reference voltage of 11.7 V +/- 5% with tighter reference tolerances of 1%, 2%, and 3% available on
