2N6802, 2N6796 Datasheet - Microsemi

2N6802 N-CHANNEL MOSFET

This family of switching transistors is military qualified up to the JANTXV level for highreliability applications. The 2N6798 part number is also qualified to the JANS level. These devices are also available in a low profile U-18 LCC surface mount package. Microsemi also offers numerous other tran.

2N6802 Features

* JEDEC registered 2N6796, 2N6798, 2N6800 and 2N6802 number series.

* JAN, JANTX, and JANTXV qualifications are available per MIL-PRF-19500/557.

* JANS qualification is available on 2N6798 only. (See part nomenclature for all available options.)

* RoHS compliant versions a

2N6796-Microsemi.pdf

This datasheet PDF includes multiple part numbers: 2N6802, 2N6796. Please refer to the document for exact specifications by model.

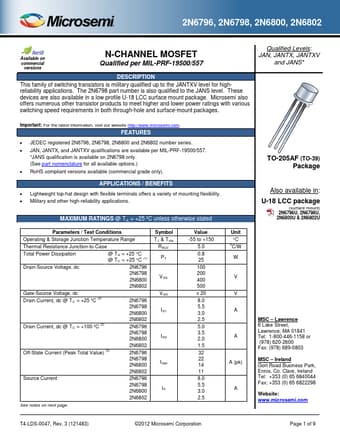

2N6802 Datasheet Preview Page 2 2N6802 Datasheet Preview Page 3

Datasheet Details

Part number:

2N6802, 2N6796

Manufacturer:

Microsemi ↗

File Size:

0.96 MB

Description:

N-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: 2N6802, 2N6796.
Please refer to the document for exact specifications by model.
