2N6804 - TRANSISTORS

Datasheet Summary

Features

  • n n n n n Repetitive Avalanche Ratings Dynamic dv/dt Rating Hermetically Sealed Simple Drive Requirements Ease of Paralleling Absolute Maximum Ratings Parameter ID @ VGS = 0V, TC = 25°C ID @ VGS = 0V, TC = 100°C I DM PD @ TC = 25°C VGS EAS IAR EAR dv/dt TJ T STG Continuous Drain Current Continuous Drain Current Pulsed Drain Current ➀ Max. Power Dissipation Linear Derating Factor Gate-to-Source Voltage Single Pulse Avalanche Energy ➁ Avalanche Current ➀ Repetitive Avalanche Energy ➀ Peak Diode.

📥 Download Datasheet

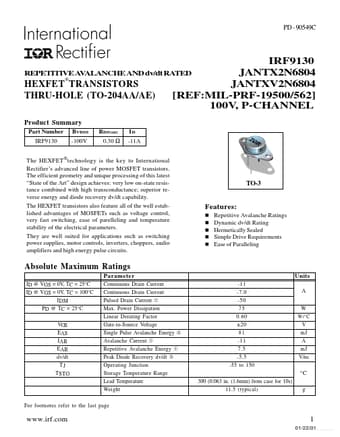

Datasheet preview – 2N6804

📁 Similar Datasheet

  • 2N6804 - P-CHANNEL MOSFET (Microsemi)
  • 2N6800 - N-CHANNEL POWER MOSFET (Seme LAB)
  • 2N6800 - N-CHANNEL MOSFET (Microsemi)
  • 2N6802 - N-CHANNEL MOSFET (Microsemi)
  • 2N6802 - N-CHANNEL ENHANCEMENT MODE POWER MOSFET (Seme LAB)
  • 2N681 - Thyristors (RCA)
  • 2N681 - silicon controlled rectifiers (Motorola)
  • 2N681 - SILICON CONTROLLED RECTIFIER (Digitron Semiconductors)
  • 2N681 - SILICON CONTROLLED RECTIFIER (Central Semiconductor)
  • 2N681A - SILICON CONTROLLED RECTIFIER (Central Semiconductor)
Other Datasheets by International Rectifier
  • 2N681 - 25 and 35 Amp RMS SCRs
  • 2N682 - 25 and 35 Amp RMS SCRs
  • 2N683 - 25 and 35 Amp RMS SCRs
  • 2N6845 - POWER MOSFET
  • 2N685 - 25 and 35 Amp RMS SCRs
  • 2N686 - 25 AND 35 AMP RMS SCR
  • 2N687 - 25 and 35 Amp RMS SCRs
  • 2N688 - 25 and 35 Amp RMS SCRs

Full PDF Text Transcription

Click to expand full text
PD - 90549C IRF9130 REPETITIVE A V ALANCHE AND dv/dt RATED JANTX2N6804  HEXFET TRANSISTORS JANTXV2N6804 THRU-HOLE (TO-204AA/AE) [REF:MIL-PRF-19500/562] 100V, P-CHANNEL Product Summary Part Number IRF9130 BVDSS -100V RDS(on) 0.30 Ω ID -11A The HEXFETtechnology is the key to International Rectifier’s advanced line of power MOSFET transistors. The efficient geometry and unique processing of this latest “State of the Art” design achieves: very low on-state resistance combined with high transconductance; superior reverse energy and diode recovery dv/dt capability. The HEXFET transistors also feature all of the well established advantages of MOSFETs such as voltage control, very fast switching, ease of parelleling and temperature stability of the electrical parameters.
