A2F200, A2F060 Datasheet - Microsemi

A2F200 SmartFusion Customizable System-on-Chip

Revision 14 SmartFusion Customizable System-on-Chip (cSoC) Microcontroller Subsystem (MSS) Hard 100 MHz 32-bit ARM® Cortex®-M3 Processor 1.25 DMIPS/MHz Throughput from Zero Wait State Memory Memory Protection Unit (MPU) Single Cycle Multiplication, Hardware Divide JTAG Debug (4 wires), Serial Wire Debug (SWD, 2 wires), and Single Wire Viewer (SWV) Interfaces Internal Memory Embedded Nonvolatile Flash Memory (eNVM), 128 Kbytes.

A2F060-Microsemi.pdf

This datasheet PDF includes multiple part numbers: A2F200, A2F060. Please refer to the document for exact specifications by model.

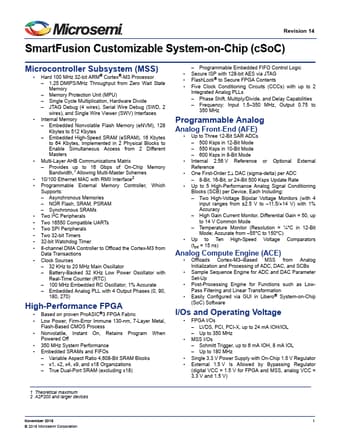

A2F200 Datasheet Preview Page 2 A2F200 Datasheet Preview Page 3

Datasheet Details

Part number:

A2F200, A2F060

Manufacturer:

Microsemi ↗

File Size:

11.64 MB

Description:

Smartfusion customizable system-on-chip.

Note:

This datasheet PDF includes multiple part numbers: A2F200, A2F060.
Please refer to the document for exact specifications by model.
