APT68GA60S, APT68GA60B High Speed PT IGBT

APT68GA60S Description

APT68GA60B APT68GA60S 600V High Speed PT IGBT POWER MOS 8® is a high speed Punch-Through switch-mode IGBT.Low Eoff is achieved through leading tech.

APT68GA60S Features

* Fast switching with low EMI
* Very Low Eoff for maximum efficiency
* Ultra low Cres for improved noise immunity
* Low conduction loss
* Low gate charge
* Increased intrinsic gate resistance for low EMI

APT68GA60S Applications

* ZVS phase shifted and other full bridge
* Half bridge
* High power PFC boost
* Welding
* UPS, solar, and other inverters
* High frequency, high efficiency industrial Absolute Maximum Ratings Symbol Parameter Ratings Vces IC1 IC2 ICM VGE PD SSOA TJ

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: APT68GA60S, APT68GA60B. Please refer to the document for exact specifications by model.

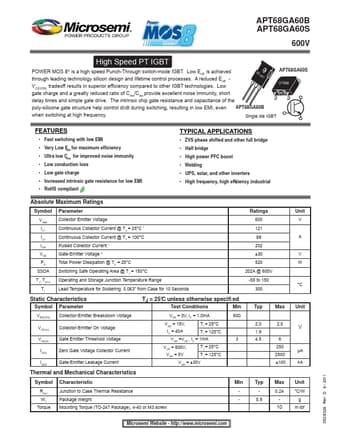

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APT68GA60S, APT68GA60B
Manufacturer
Microsemi ↗
File Size
183.79 KB
Datasheet
APT68GA60B-Microsemi.pdf
Description
High Speed PT IGBT
Note
This datasheet PDF includes multiple part numbers: APT68GA60S, APT68GA60B.
Please refer to the document for exact specifications by model.
